Sensors

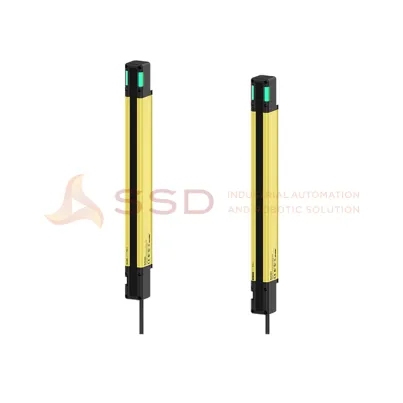

Safety Light Curtain (High Performance Type)

The SFLA series safety light curtains are installed in potentially hazardous or risky areas to protect personnel from injury. The light curtain features proven technology from the Autonics sensor area and sensor mapping. Light curtains are manufactured to meet international safety standards and regulations. Various detection models (finger/hand/hand-body detection) and other safety functions are available for various applications. The special atLightCurtain software enables real-time status monitoring user settings such as automatic muting/blanking area functions.

Main feature:
1. Finger Detection
2. Hand Detection
3. Finger-Hand Detection
4. 7-Segment Display
5. Long Range (15 Meters)
6. Various Protection Circuits
7. Special Software (at Light-Curtain)
8. Protection Level (IP65/67/67G/69K)

• International safety standards and regulatory standards
: Type 4 ESPE(AOPD), SIL3, SIL CL3, Category 4, PL e, CE Certification, UL, S-Mark, KCs(Industrial robot protection device, Select model)
• There are 3 types of detection models (finger, hand, hand-body detection)
• Various models available with protection height (144 ~ 1,868 mm)
• Various safety-related & self-diagnosis functions are available
- safety-related: interlock, lockout, EDM, muting, override, blanking, resolution reduction, etc.
- self-diagnosis: mutual interference, light level detection, sensor malfunction detection
• Selectable detection distance available (short/long mode) & Switch control setting available (NPN/PNP output)
• Operation status reading with 7-segment display and LED Indicator
• Easy beam adjustment with up and down beam indicators
• The output display indicator at the top shows the light status received/blocked and the status silent. Additional lights are not required. (patent) 4
• 4 non-safety outputs available for various applications (2 AUX, 2 lamps)
• Detailed function settings with special software atLightCurtain (SFLA model)

Various Models Available for Various Applications
Finger detection (Ø14 mm), hand detection (Ø20 mm), hand-body detection (Ø30 mm) models are available for applications in various user environments.

Ease of Installation
The user can check the status of the light received during installation with the light indicators on the top and bottom of the unit. Standard adjustable brackets are available that can be mounted on top, bottom, or center of the unit. The bracket can be adjusted 15 degrees to the right or left for easy installation.

High Visibility with Operation Indicator/View
This unit features a 7-segment display and LED indicators for easy status reading.

Slim Size, High Durability and Environmental Resilience
This unit has a slim size L 29 mm x W 35 mm with a strong housing body and screen protector. Protection grades IP65, IP67, IP67G(JEM), and IP69K allow installation of the unit in a variety of environments.

Dedicated Software Provided (atLightCurtain)
atLightCurtain is a dedicated software to monitor functions of SFLA series light curtains. (Detailed settings may not be available on standard type SFL series).

Application:
Logistics industry
The safety light curtain is used to detect the entry of personnel into the dangerous zone of robot operation and stop the operation of the machine when detected.
