Ball Screw

DCMB
The Screw Nut is a sliding feed nut compatible with the standards for a 30-degree trapezoidal screw thread. Formed by die-casting special bearing alloy of superb abrasion resistance, it is an inexpensive high precision product.

Change Nut
A high-performance feed screw that achieves 50% cost reduction from the conventional machined products by combining a die cast screw nut and a highly accurate rolled screw shaft.

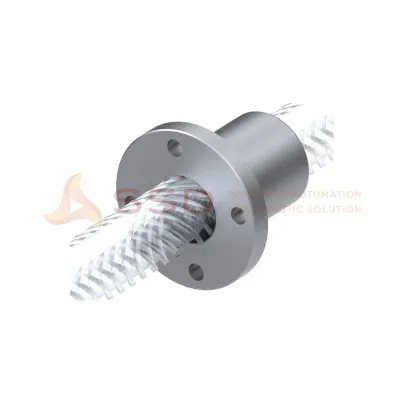

Change Nut Model DCMB
This model is capable of easily converting linear motion to rotary motion and vise versa with 70% efficiency. Since the lead is large, it is optimal for building a fast feed mechanism with low speed rotation.

DCMB 8T
Outer dimensions Outer diameter: 15 mm
Outer dimensions Length: 16 mm
Change nut dimensions Flange diameter: 28 mm
Multi-thread screw shaft details Outer diameter: 9 mm
Multi-thread screw shaft details Lead: 24 mm
Permissible dynamic thrust: 863 N

DCMB 12T
Outer dimensions Outer diameter: 20 mm
Outer dimensions Length: 25 mm
Change nut dimensions Flange diameter: 36 mm
Multi-thread screw shaft details Outer diameter: 13.3 mm
Multi-thread screw shaft details Lead: 36 mm
Permissible dynamic thrust: 1370 N

DCMB 15T
Outer dimensions Outer diameter: 22 mm
Outer dimensions Length: 30 mm
Change nut dimensions Flange diameter: 44 mm
Multi-thread screw shaft details Outer diameter: 15.8 mm
Multi-thread screw shaft details Lead: 44.4 mm
Permissible dynamic thrust: 4610 N

DCMB 17T
Outer dimensions Outer diameter: 28 mm
Outer dimensions Length: 35 mm
Change nut dimensions Flange diameter: 51 mm
Multi-thread screw shaft details Outer diameter: 17.8 mm
Multi-thread screw shaft details Lead: 50 mm
Permissible dynamic thrust: 6080 N

DCMB 20T
Outer dimensions Outer diameter: 32 mm
Outer dimensions Length: 40 mm
Change nut dimensions Flange diameter: 56 mm
Multi-thread screw shaft details Outer diameter: 21.2 mm
Multi-thread screw shaft details Lead: 60 mm
Permissible dynamic thrust: 8330 N

DCMB 25T
Outer dimensions Outer diameter: 36 mm
Outer dimensions Length: 50 mm
Change nut dimensions Flange diameter: 61 mm
Multi-thread screw shaft details Outer diameter: 25.6 mm
Multi-thread screw shaft details Lead: 73.3 mm
Permissible dynamic thrust: 12700 N

DCMB 30T
Outer dimensions Outer diameter: 44 mm
Outer dimensions Length: 56 mm
Change nut dimensions Flange diameter: 76 mm
Multi-thread screw shaft details Outer diameter: 31.9 mm
Multi-thread screw shaft details Lead: 93.3 mm
Permissible dynamic thrust: 16200 N

DCMB 35T
Outer dimensions Outer diameter: 52 mm
Outer dimensions Length: 60 mm
Change nut dimensions Flange diameter: 84 mm
Multi-thread screw shaft details Outer diameter: 34.1 mm
Multi-thread screw shaft details Lead: 97.7 mm
Permissible dynamic thrust: 18500 N

DCMB 40
Outer dimensions Outer diameter: 58 mm
Outer dimensions Length: 70 mm
Change nut dimensions Flange diameter: 98 mm
Multi-thread screw shaft details Outer diameter: 44 mm
Multi-thread screw shaft details Lead: 119.9 mm
Permissible dynamic thrust: 40000 N

DCMB 45
Outer dimensions Outer diameter: 64 mm
Outer dimensions Length: 75 mm
Change nut dimensions Flange diameter: 104 mm
Multi-thread screw shaft details Outer diameter: 47 mm
Multi-thread screw shaft details Lead: 129.9 mm
Permissible dynamic thrust: 46600 N

DCMB 50
Outer dimensions Outer diameter: 68 mm
Outer dimensions Length: 80 mm
Change nut dimensions Flange diameter: 109 mm
Multi-thread screw shaft details Outer diameter: 52 mm
Multi-thread screw shaft details Lead: 149.9 mm
Permissible dynamic thrust: 57100 N
