Pressure Switch

SUCO Mechanical pressure switches serve to monitor the pressure on liquid and gas media by opening and closing the switching contact to achieve the desired pressure. There are 2 types of mechanical pressure switches on SUCO, that is diaphragm pressure switches and piston pressure switches. Diaphragm pressure switches are used in pressure ranges ranging from 0.1 bar to 100 bars. while piston pressure switches are used at a pressure range ranging from 10 bars to 400 bars. SUCO Mechanical pressure switches offer an over pressure safety level of up to 600 bar. SUCO Mechanical pressure switches offer various types of seals according to the needs of measurement media ranging from oil, gasoline, drinking water, oxygen, nitrogen, gas, etc.

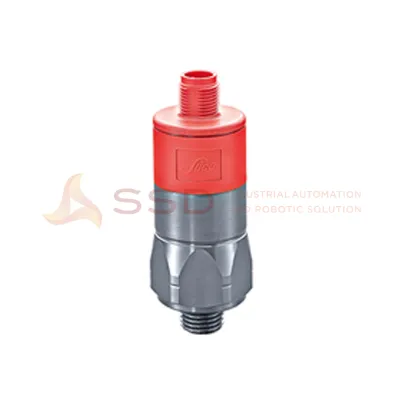

The features of Druckschalter SW 27 0134 series are:
1. The pressure range starts from 0.3 to 100 bars
2. 27 hex pressure switches made of zinc-coated iron
3. Maximum voltage of 48 V
4.Changeover (SPDT) switching contacts made from silver (available as gold-based switching contacts)
5. Level of over pressure safety up to 300 bars
6. Electrical connection M12 x 1
7. Sealing material: NBR, EPDM, FKM, HNBR
8. Various screw options: G1 / 4, M 10x1, M12x1.5 and NPT 1/8, NPT 1/4, 7 / 16-20UNF, 9 / 16-18UNF
9. High protection level IP67
