Ball Spline

Rotary

The Ball Spline is a rolling guide spline bearing. This is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

Rotary

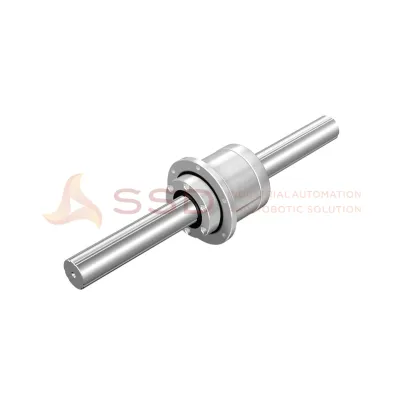

This model is a compact unit type of Ball Spline whose support bearings are directly integrated with the outer surface of the spline nut.
Features of this product are:
- easy installation
- No angular backlash
- High rigidity
- Compact design

Model number
LTR, LTR-A

LTR
A compact unit type whose support bearings are directly integrated with the outer surface of the spline nut.
LTR 16
Spline Nut Outer diameter: 52 mm
Spline Nut Diameter : –0.007 mm
Spline Nut Length: 50 mm
Flange diameter: 68 mm
Basic torque rating Dynamic rating: 31.4 N-m
Basic torque rating Static rating: 34.3 N-m
Radial Dynamic rating: 7.06 kN
Radial Static rating: 12.6 kN
Static permissible moment MA.1: 67.6 N-m

LTR 20
Spline Nut Outer diameter: 56 mm
Spline Nut Diameter : –0.007 mm
Spline Nut Length: 63 mm
Flange diameter: 72 mm
Basic torque rating Dynamic rating: 56.9 N-m
Basic torque rating Static rating: 55.9 N-m
Radial Dynamic rating: 10.2 kN
Radial Static rating: 17.8 kN
Static permissible moment MA.1: 118 N-m

LTR 25
Spline Nut Outer diameter: 62 mm
Spline Nut Diameter : –0.007 mm
Spline Nut Length: 71 mm
Flange diameter: 78 mm
Basic torque rating Dynamic rating: 105 N-m
Basic torque rating Static rating: 103 N-m
Radial Dynamic rating: 15.2 kN
Radial Static rating: 25.8 kN
Static permissible moment MA.1: 210 N-m

LTR 32
Spline Nut Outer diameter: 80 mm
Spline Nut Diameter : –0.007 mm
Spline Nut Length: 80 mm
Flange diameter: 105 mm
Basic torque rating Dynamic rating: 180 N-m
Basic torque rating Static rating: 157 N-m
Radial Dynamic rating: 20.5 kN
Radial Static rating: 34 kN
Static permissible moment MA.1: 290 N-m

LTR 40
Spline Nut Outer diameter: 100 mm
Spline Nut Diameter : –0.008 mm
Spline Nut Length: 100 mm
Flange diameter: 130 mm
Basic torque rating Dynamic rating: 419 N-m
Basic torque rating Static rating: 377 N-m
Radial Dynamic rating: 37.8 kN
Radial Static rating: 60.5 kN
Static permissible moment MA.1: 687 N-m

LTR 50
Spline Nut Outer diameter: 120 mm
Spline Nut Diameter : –0.008 mm
Spline Nut Length: 125 mm
Flange diameter: 156 mm
Basic torque rating Dynamic rating: 842 N-m
Basic torque rating Static rating: 769 N-m
Radial Dynamic rating: 60.9 kN
Radial Static rating: 94.5 kN
Static permissible moment MA.1: 1340 N-m

LTR 60
Spline Nut Outer diameter: 134 mm
Spline Nut Diameter : –0.009 mm
Spline Nut Length: 140 mm
Flange diameter: 170 mm
Basic torque rating Dynamic rating: 1220 N-m
Basic torque rating Static rating: 1040 N-m
Radial Dynamic rating: 73.5 kN
Radial Static rating: 111.7 kN
Static permissible moment MA.1: 1600 N-m

LTR-A
A compact type even smaller than LTR.
LTR8 A
Spline Nut Outer diameter: 32 mm
Spline Nut Diameter : –0.009 , –0.025 mm
Spline Nut Length: 25 mm
Flange diameter: 44 mm
Basic torque rating Dynamic rating: 1.96 N-m
Basic torque rating Static rating: 2.94 N-m
Radial Dynamic rating: 1.47 kN
Radial Static rating: 2.55 kN
Static permissible moment MA.2: 5.9 N-m

LTR10 A
Spline Nut Outer diameter: 36 mm
Spline Nut Diameter : –0.009 , –0.025 mm
Spline Nut Length: 33 mm
Flange diameter: 48 mm
Basic torque rating Dynamic rating: 3.92 N-m
Basic torque rating Static rating: 7.84 N-m
Radial Dynamic rating: 2.84 kN
Radial Static rating: 4.9 kN
Static permissible moment MA.3: 15.7 N-m

LTR16 A
Spline Nut Outer diameter: 48 mm
Spline Nut Diameter : –0.009 , –0.025 mm
Spline Nut Length: 50 mm
Flange diameter: 64 mm
Basic torque rating Dynamic rating: 31.4 N-m
Basic torque rating Static rating: 34.3 N-m
Radial Dynamic rating: 7.06 kN
Radial Static rating: 12.6 kN
Static permissible moment MA.4: 67.6 N-m

LTR20 A
Spline Nut Outer diameter: 56 mm
Spline Nut Diameter : –0.010 , –0.029 mm
Spline Nut Length: 63 mm
Flange diameter: 72 mm
Basic torque rating Dynamic rating: 56.9 N-m
Basic torque rating Static rating: 55.9 N-m
Radial Dynamic rating: 10.2 kN
Radial Static rating: 17.8 kN
Static permissible moment MA.5: 118 N-m

LTR25 A
Spline Nut Outer diameter: 66 mm
Spline Nut Diameter : –0.010 , –0.029 mm
Spline Nut Length: 71 mm
Flange diameter: 86 mm
Basic torque rating Dynamic rating: 105 N-m
Basic torque rating Static rating: 103 N-m
Radial Dynamic rating: 15.2 kN
Radial Static rating: 25.8 kN
Static permissible moment MA.6: 210 N-m

LTR32 A
Spline Nut Outer diameter: 78 mm
Spline Nut Diameter : –0.010 , –0.029 mm
Spline Nut Length: 80 mm
Flange diameter: 103 mm
Basic torque rating Dynamic rating: 180 N-m
Basic torque rating Static rating: 157 N-m
Radial Dynamic rating: 20.5 kN
Radial Static rating: 34 kN
Static permissible moment MA.7: 290 N-m

LTR40 A
Spline Nut Outer diameter: 100 mm
Spline Nut Diameter : –0.012 , –0.034 mm
Spline Nut Length: 100 mm
Flange diameter: 130 mm
Basic torque rating Dynamic rating: 419 N-m
Basic torque rating Static rating: 377 N-m
Radial Dynamic rating: 37.8 kN
Radial Static rating: 60.5 kN
Static permissible moment MA.8: 687 N-m
