Direct Drive

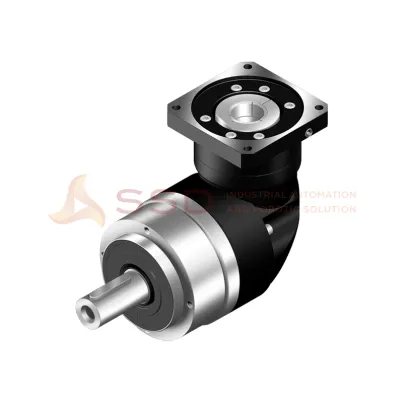

Apex Dynamics - AER Series is the Apex AER Series which has 90 ° input through the helical gears and features a very short housing, lightweight but rigid and full compatibility with a standard motor adapter. Apex is the only Manufacturer that Produces World Wide Helical Stainless Steel Cylinder Gearboxes. High Precision, High Torque and Silent Operations are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allows High Radial and Axial Loads.

The features of Apex Dynamics - AER Series are:

Output torque
T2N : 9 Nm - 2000 Nm

Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20
2-stage :15 /20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 80 /90 / 100 / 120 / 140 / 160 / 180 / 200
*Only AER050 2-stage offers 15,20 option.

Low backlash
1-stage : ≤10 arcmin
2-stage : ≤14 arcmin

High efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low noise
Compact structure

SIZE
AER050 / AER070 / AER090 / AER120 / AER155 / AER205 / AER235

Automation and Robotics Distributor of Industrial Robot Direct Drive Apex Dynamics AER Series
