Ball Spline

Rotary with Gears

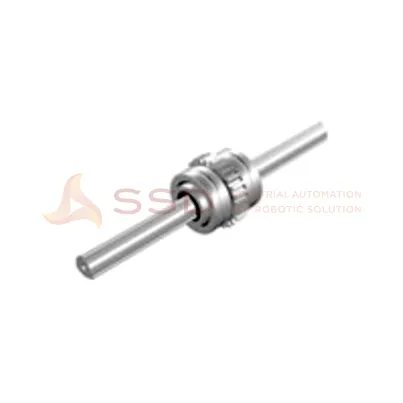

Ball Spline merupakan rolling guide spline bearing. Ball Spline ini merupakan produk inovatif dengan ball rolling pada groove yang terhubung dengan shaft, realizing allowable loads lebih baik dengan menggunakan linear bushing dan memungkinkan torque transmission selama membuat pergeseran linear.

Rotary with Gears
Model ini adalah tipe unit yang memiliki gigi persneling pada lingkar flensa, dan bantalan jarum radial dan dorong terintegrasi secara kompak pada mur spline. Ball Spline ini optimal untuk mekanisme transmisi torsi dengan spline nut drive.

Fitur dari produk ini adalah:
- Optimal untuk transmisi torsi dengan spline nut drive
- Tidak ada serangan sudut
- Kekakuan tinggi
- Desain yang ringkas

Model number
LBG, LBGT.

LBG
These models are unit types based on model LBR, but have gear teeth on the flange circumference and radial and thrust bearings on the spline nut, all compactly integrated.It is optimal for a torque transmission mechanism with spline nut drive.
LBG 20
Spline Nut Outer diameter: 30 mm
Spline Nut Diameter : –0.009 mm
Spline Nut Length: 60 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 90.2 N-m
Basic torque rating Static rating: 213 N-m
Radial Dynamic rating: 9.4 kN
Radial Static rating: 20.1 kN
Static permissible moment MA.3: 103 N-m

LBG 25
Spline Nut Outer diameter: 40 mm
Spline Nut Diameter : –0.011 mm
Spline Nut Length: 70 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 176 N-m
Basic torque rating Static rating: 381 N-m
Radial Dynamic rating: 14.9 kN
Radial Static rating: 28.7 kN
Static permissible moment MA.4: 171 N-m

LBG 30
Spline Nut Outer diameter: 45 mm
Spline Nut Diameter : –0.011 mm
Spline Nut Length: 80 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 312 N-m
Basic torque rating Static rating: 657 N-m
Radial Dynamic rating: 22.5 kN
Radial Static rating: 41.4 kN
Static permissible moment MA.5: 295 N-m

LBG 40
Spline Nut Outer diameter: 60 mm
Spline Nut Diameter : –0.013 mm
Spline Nut Length: 100 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 696 N-m
Basic torque rating Static rating: 1420 N-m
Radial Dynamic rating: 37.1 kN
Radial Static rating: 66.9 kN
Static permissible moment MA.6: 586 N-m

LBG 50
Spline Nut Outer diameter: 75 mm
Spline Nut Diameter : –0.013 mm
Spline Nut Length: 112 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 1290 N-m
Basic torque rating Static rating: 2500 N-m
Radial Dynamic rating: 55.1 kN
Radial Static rating: 94.1 kN
Static permissible moment MA.7: 941 N-m

LBG 60
Spline Nut Outer diameter: 90 mm
Spline Nut Diameter : –0.015 mm
Spline Nut Length: 127 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 1870 N-m
Basic torque rating Static rating: 3830 N-m
Radial Dynamic rating: 66.2 kN
Radial Static rating: 121 kN
Static permissible moment MA.8: 1300 N-m

LBG 85
Spline Nut Outer diameter: 120 mm
Spline Nut Diameter : –0.015 mm
Spline Nut Length: 155 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 4740 N-m
Basic torque rating Static rating: 9550 N-m
Radial Dynamic rating: 119 kN
Radial Static rating: 213 kN
Static permissible moment MA.9: 3180 N-m

LBGT
These models are unit types based on model LBR, but have gear teeth on the flange circumference and radial and thrust bearings on the spline nut, all compactly integrated.It is optimal for a torque transmission mechanism with spline nut drive.
LBGT 20
Spline Nut Outer diameter: 30 mm
Spline Nut Diameter : –0.009 mm
Spline Nut Length: 60 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 90.2 N-m
Basic torque rating Static rating: 213 N-m
Radial Dynamic rating: 9.4 kN
Radial Static rating: 20.1 kN
Static permissible moment MA.4: 103 N-m

LBGT 25
Spline Nut Outer diameter: 40 mm
Spline Nut Diameter : –0.011 mm
Spline Nut Length: 70 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 176 N-m
Basic torque rating Static rating: 381 N-m
Radial Dynamic rating: 14.9 kN
Radial Static rating: 28.7 kN
Static permissible moment MA.5: 171 N-m

LBGT 30
Spline Nut Outer diameter: 45 mm
Spline Nut Diameter : –0.011 mm
Spline Nut Length: 80 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 312 N-m
Basic torque rating Static rating: 657 N-m
Radial Dynamic rating: 22.5 kN
Radial Static rating: 41.4 kN
Static permissible moment MA.6: 295 N-m

LBGT 40
Spline Nut Outer diameter: 60 mm
Spline Nut Diameter : –0.013 mm
Spline Nut Length: 100 mm
Flange diameter: –0.2 mm
Basic torque rating Dynamic rating: 696 N-m
Basic torque rating Static rating: 1420 N-m
Radial Dynamic rating: 37.1 kN
Radial Static rating: 66.9 kN
Static permissible moment MA.7: 586 N-m

LBGT 50
Spline Nut Outer diameter: 75 mm
Spline Nut Diameter : –0.013 mm
Spline Nut Length: 112 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 1290 N-m
Basic torque rating Static rating: 2500 N-m
Radial Dynamic rating: 55.1 kN
Radial Static rating: 94.1 kN
Static permissible moment MA.8: 941 N-m

LBGT 60
Spline Nut Outer diameter: 90 mm
Spline Nut Diameter : –0.015 mm
Spline Nut Length: 127 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 1870 N-m
Basic torque rating Static rating: 3830 N-m
Radial Dynamic rating: 66.2 kN
Radial Static rating: 121 kN
Static permissible moment MA.9: 1300 N-m

LBGT 85
Spline Nut Outer diameter: 120 mm
Spline Nut Diameter : –0.015 mm
Spline Nut Length: 155 mm
Flange diameter: –0.3 mm
Basic torque rating Dynamic rating: 4740 N-m
Basic torque rating Static rating: 9550 N-m
Radial Dynamic rating: 119 kN
Radial Static rating: 213 kN
Static permissible moment MA.10: 3180 N-m
