Ball Screw
THK - Rolled Ballscrew WHF
WHF

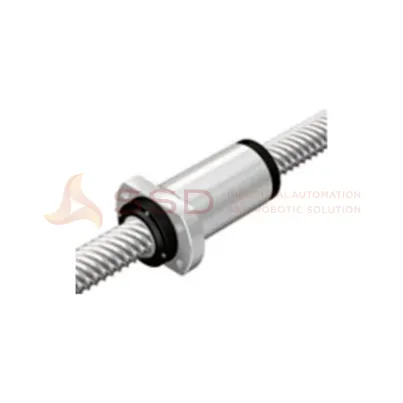

Rolled Ball Screw
Large-lead High-speed Model WHF
Ball Screw ini untuk umpan berkecepatan tinggi mencapai nilai DN 100.000 dengan menggunakan struktur sirkulasi baru.
Fitur dari produk ini adalah:
- Mencapai akurasi sudut timah kelas C7
- Mencapai kekasaran balapan bola dari poros sekrup 0,20 a atau kurang
- Bola raceways dari kacang ballscrew selesai dengan menggiling
- Harga rendah
- Efek anti debu tingkat tinggi
Specification:
WHF 1530-3.4(Rolled)
Screw shaft outer diameter: 15 mm
Lead: 30 mm
Ball center-to- center diameter: 15.75 mm
Outer diameter: 32 mm
Flange diameter: 53 mm
Overall length: 64.5 mm
Load Dynamic Rating: 8 kN
Load Static Rating: 14.4 kN
WHF 2020-3.4(Rolled)
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 42 mm
Flange diameter: 64 mm
Overall length: 47.1 mm
Load Dynamic Rating: 9.6 kN
Load Static Rating: 21 kN
WHF 2040-3.4(Rolled)
Screw shaft outer diameter: 20 mm
Lead: 40 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 37 mm
Flange diameter: 62 mm
Overall length: 82.7 mm
Load Dynamic Rating: 9.6 kN
Load Static Rating: 20.3 kN
WHF 2525-3.4(Rolled)
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 50 mm
Flange diameter: 77 mm
Overall length: 58.8 mm
Load Dynamic Rating: 14.5 kN
Load Static Rating: 33.1 kN
WHF 2550-3.4(Rolled)
Screw shaft outer diameter: 25 mm
Lead: 50 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 45 mm
Flange diameter: 69 mm
Overall length: 103.3 mm
Load Dynamic Rating: 14.4 kN
Load Static Rating: 31.9 kN
