Ball Screw THK - Rolled Ballscrew MTF
Ball Screw

THK - Rolled Ballscrew MTF

MTF

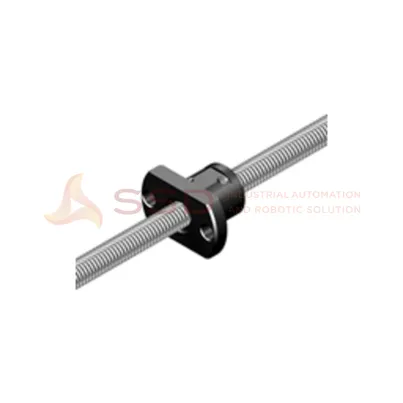

Rolled Ball Screw

Miniature Model MTF
Sebuah miniatur dengan screw shaft diameter dari φ6 sampai φ12 mm dan sebuah lead dari 1 sampai 2 mm.

Fitur dari produk ini adalah:
- Mencapai akurasi sudut timah kelas C7
- Mencapai kekasaran balapan bola dari poros sekrup 0,20 a atau kurang
- Bola raceways dari kacang ballscrew selesai dengan menggiling
- Harga rendah
- Efek anti debu tingkat tinggi

Spesifikasi:
MTF 0601-3.7
Screw shaft outer diameter: 6 mm
Lead: 1 mm
Ball center-to- center diameter: 6.15 mm
Outer diameter: 13 mm
Flange diameter: 30 mm
Overall length: 21 mm
Load Dynamic Rating: 0.7 kN
Load Static Rating: 1.2 kN

MTF 0802-3.7
Screw shaft outer diameter: 8 mm
Lead: 2 mm
Ball center-to- center diameter: 8.3 mm
Outer diameter: 20 mm
Flange diameter: 40 mm
Overall length: 28 mm
Load Dynamic Rating: 2.1 kN
Load Static Rating: 3.8 kN

MTF 1002-3.7
Screw shaft outer diameter: 10 mm
Lead: 2 mm
Ball center-to- center diameter: 10.3 mm
Outer diameter: 23 mm
Flange diameter: 43 mm
Overall length: 28 mm
Load Dynamic Rating: 2.3 kN
Load Static Rating: 4.8 kN

MTF 1202-3.7
Screw shaft outer diameter: 12 mm
Lead: 2 mm
Ball center-to- center diameter: 12.3 mm
Outer diameter: 25 mm
Flange diameter: 47 mm
Overall length: 30 mm
Load Dynamic Rating: 2.5 kN
Load Static Rating: 5.8 kN
