Ball Screw

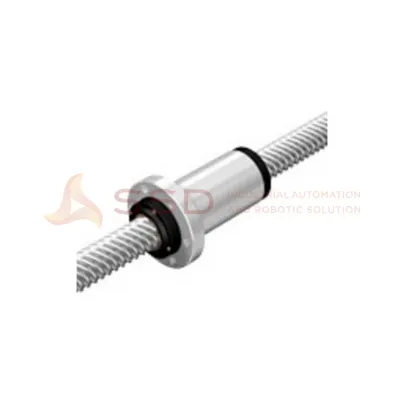

THK - Rolled Ballscrew CNF
CNF
Rolled Ball Screw
Super Lead (High Load ) Model CNF
Dengan kombinasi 4 baris large-lead loaded grooves dan long nut, Ball Screw ini mencapai masa pakai yang lama.
Fitur dari produk ini adalah:
- Mencapai akurasi sudut timah kelas C7
- Mencapai kekasaran balapan bola dari poros sekrup 0,20 a atau kurang
- Bola raceways dari kacang ballscrew selesai dengan menggiling
- Harga rendah
- Efek anti debu tingkat tinggi
Spesifikasi:
CNF 1530-6
Screw shaft outer diameter: 15 mm
Lead: 30 mm
Ball center-to- center diameter: 15.75 mm
Outer diameter: 32 mm
Flange diameter: 53 mm
Overall length: 63 mm
Load Dynamic Rating: 10.1 kN
Load Static Rating: 24.7 kN
CNF 2040-6
Screw shaft outer diameter: 20 mm
Lead: 40 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 37 mm
Flange diameter: 57 mm
Overall length: 81 mm
Load Dynamic Rating: 12 kN
Load Static Rating: 34.4 kN
CNF 2550-6
Screw shaft outer diameter: 25 mm
Lead: 50 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 45 mm
Flange diameter: 69 mm
Overall length: 102 mm
Load Dynamic Rating: 18.9 kN
Load Static Rating: 53.9 kN
CNF 3060-6
Screw shaft outer diameter: 30 mm
Lead: 60 mm
Ball center-to- center diameter: 31.25 mm
Outer diameter: 55 mm
Flange diameter: 89 mm
Overall length: 122 mm
Load Dynamic Rating: 26.2 kN
Load Static Rating: 77.7 kN
