Ball Screw

BNT
Rolled Ball Screw

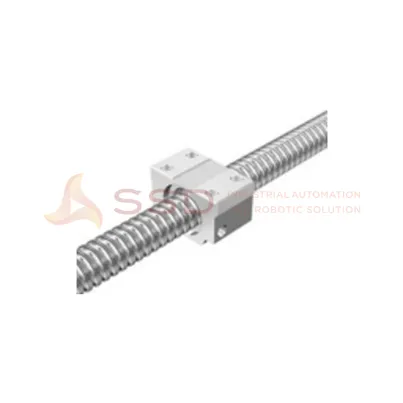

Square Nut Model BNT
Karena mounting screw holes dibor pada Square Nut Model, model ini dapat secara kompak dipasang pada mesin tanpa perumahan.


Fitur dari produk ini adalah:
- Mencapai akurasi sudut timah kelas C7
- Mencapai kekasaran balapan bola dari poros sekrup 0,20 a atau kurang
- Bola raceways dari kacang ballscrew selesai dengan menggiling
- Harga rendah
- Efek anti debu tingkat tinggi

BNT 1404-3.6 (Rolled)
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.4 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 5.5 kN
Load Static Rating: 11.5 kN

BNT 1405-2.6 (Rolled)
Screw shaft outer diameter: 14 mm
Lead: 5 mm
Ball center-to- center diameter: 14.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 5 kN
Load Static Rating: 11.4 kN

BNT 1605-2.6 (Rolled)
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 36 mm
Load Dynamic Rating: 5.4 kN
Load Static Rating: 13.3 kN

BNT 1808-3.6 (Rolled)
Screw shaft outer diameter: 18 mm
Lead: 8 mm
Ball center-to- center diameter: 19.3 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 56 mm
Load Dynamic Rating: 13.1 kN
Load Static Rating: 31 kN

BNT 2005-2.6 (Rolled)
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 6 kN
Load Static Rating: 16.5 kN

BNT 2010-2.6 (Rolled)
Screw shaft outer diameter: 20 mm
Lead: 10 mm
Ball center-to- center diameter: 21.25 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 58 mm
Load Dynamic Rating: 10.6 kN
Load Static Rating: 25.1 kN

BNT 2505-2.6 (Rolled)
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 6.7 kN
Load Static Rating: 20.8 kN

BNT 2510-5.3 (Rolled)
Screw shaft outer diameter: 25 mm
Lead: 10 mm
Ball center-to- center diameter: 26.8 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 94 mm
Load Dynamic Rating: 31.2 kN
Load Static Rating: 83.7 kN

BNT 2806-2.6(Rolled)
Screw shaft outer diameter: 28 mm
Lead: 6 mm
Ball center-to- center diameter: 28.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 42 mm
Load Dynamic Rating: 7 kN
Load Static Rating: 23.4 kN

BNT 2806-5.3(Rolled)
Screw shaft outer diameter: 28 mm
Lead: 6 mm
Ball center-to- center diameter: 28.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 67 mm
Load Dynamic Rating: 12.8 kN
Load Static Rating: 46.8 kN

BNT 3210-2.6(Rolled)
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 64 mm
Load Dynamic Rating: 19.8 kN
Load Static Rating: 53.8 kN

BNT 3210-5.3(Rolled)
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 94 mm
Load Dynamic Rating: 36 kN
Load Static Rating: 107.5 kN

BNT 3610-2.6(Rolled)
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 64 mm
Load Dynamic Rating: 20.8 kN
Load Static Rating: 59.3 kN

BNT 3610-5.3(Rolled)
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 96 mm
Load Dynamic Rating: 37.8 kN
Load Static Rating: 118.7 kN

BNT 4512-5.3(Rolled)
Screw shaft outer diameter: 45 mm
Lead: 12 mm
Ball center-to- center diameter: 46.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 115 mm
Load Dynamic Rating: 49.5 kN
Load Static Rating: 169 kN
