Ball Screw

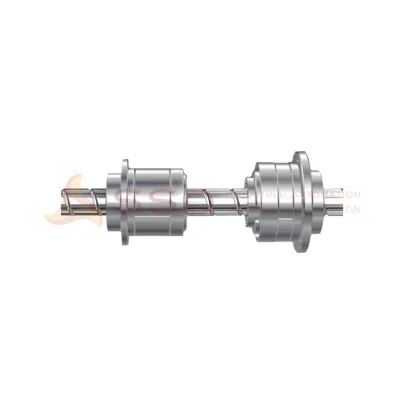

THK - Precision Ballscrew - Spline NS merupakan Unit Stroke / Rotary yang memiliki alur Ball Screw dan alur Ball Spline yang menyilang satu sama lain pada satu poros. Kacang-kacangan Sekrup Bola dan Spline Ball memiliki bantalan pendukung khusus yang langsung tertanam di keliling mur.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS
Spesifikasi:
NS 1616
Screw shaft outer diameter: 16 mm
Lead: 16 mm
Ball center-to- center diameter: 16.65 mm
Outer diameter: 52   mm
Flange diameter: 68 mm
Overall length: 43.5 mm
Ball Spline Flange Diameter: 51 mm
Ball Spline Length: 50   mm

NS 2020
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 62   mm
Flange diameter: 78 mm
Overall length: 54 mm
Ball Spline Flange Diameter: 58 mm
Ball Spline Length: 63   mm

NS 2525
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 72   mm
Flange diameter: 92 mm
Overall length: 65 mm
Ball Spline Flange Diameter: 65 mm
Ball Spline Length: 71   mm

NS 3232
Screw shaft outer diameter: 32 mm
Lead: 32 mm
Ball center-to- center diameter: 33.25 mm
Outer diameter: 80   mm
Flange diameter: 105 mm
Overall length: 80 mm
Ball Spline Flange Diameter: 77 mm
Ball Spline Length: 80   mm

NS 4040
Screw shaft outer diameter: 40 mm
Lead: 40 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 110   mm
Flange diameter: 140 mm
Overall length: 98 mm
Ball Spline Flange Diameter: 100 mm
Ball Spline Length: 100   mm

NS 5050
Screw shaft outer diameter: 50 mm
Lead: 50 mm
Ball center-to- center diameter: 52.2 mm
Outer diameter: 120   mm
Flange diameter: 156 mm
Overall length: 126 mm
Ball Spline Flange Diameter: 124 mm
Ball Spline Length: 125   mm

NS 0812A
Screw shaft outer diameter: 8 mm
Lead: 12 mm
Ball center-to- center diameter: 8.4 mm
Outer diameter: 32 mm
Flange diameter: 44 mm
Overall length: 28.5 mm
Ball Spline Flange Diameter: 32 mm
Ball Spline Length: 25 mm

NS 1015A
Screw shaft outer diameter: 10 mm
Lead: 15 mm
Ball center-to- center diameter: 10.5 mm
Outer diameter: 36 mm
Flange diameter: 48 mm
Overall length: 34.5 mm
Ball Spline Flange Diameter: 42 mm
Ball Spline Length: 33 mm

NS 1616A
Screw shaft outer diameter: 16 mm
Lead: 16 mm
Ball center-to- center diameter: 16.65 mm
Outer diameter: 48 mm
Flange diameter: 64 mm
Overall length: 40 mm
Ball Spline Flange Diameter: 51 mm
Ball Spline Length: 50   mm

NS 2020A
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 56 mm
Flange diameter: 72 mm
Overall length: 48 mm
Ball Spline Flange Diameter: 58 mm
Ball Spline Length: 63   mm

NS 2525A
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 66 mm
Flange diameter: 86 mm
Overall length: 58 mm
Ball Spline Flange Diameter: 65 mm
Ball Spline Length: 71   mm

NS 3232A
Screw shaft outer diameter: 32 mm
Lead: 32 mm
Ball center-to- center diameter: 33.25 mm
Outer diameter: 78 mm
Flange diameter: 103 mm
Overall length: 72 mm
Ball Spline Flange Diameter: 77 mm
Ball Spline Length: 80   mm

NS 4040A
Screw shaft outer diameter: 40 mm
Lead: 40 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 100 mm
Flange diameter: 130 mm
Overall length: 88 mm
Ball Spline Flange Diameter: 100 mm
Ball Spline Length: 100   mm
