Ball Screw

MDK
Precision

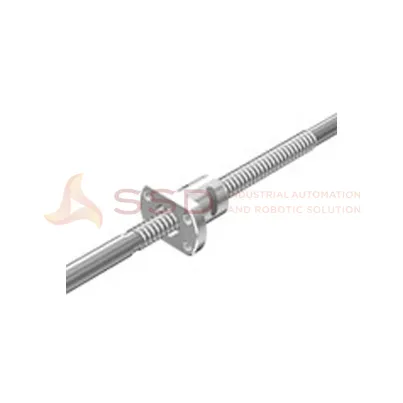

Miniature Model MDK
Jenis miniatur dengan diameter poros sekrup φ4 hingga φ14 mm dan timbal 1 sampai 5mm.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
MDK 0401-3
MDK 0401-3
Screw shaft outer diameter: 4 mm
Lead: 1 mm
Ball center-to- center diameter: 4.15 mm
Outer diameter: 9 mm
Flange diameter: 19 mm
Overall length: 13 mm
Load Dynamic Rating: 0.29 kN
Load Static Rating: 0.42 kN

MDK 0601-3
MDK 0601-3
Screw shaft outer diameter: 6 mm
Lead: 1 mm
Ball center-to- center diameter: 6.2 mm
Outer diameter: 11 mm
Flange diameter: 23 mm
Overall length: 14.5 mm
Load Dynamic Rating: 0.54 kN
Load Static Rating: 0.94 kN

MDK 0801-3
MDK 0801-3
Screw shaft outer diameter: 8 mm
Lead: 1 mm
Ball center-to- center diameter: 8.2 mm
Outer diameter: 13 mm
Flange diameter: 26 mm
Overall length: 15 mm
Load Dynamic Rating: 0.64 kN
Load Static Rating: 1.4 kN

MDK 0802-3
MDK 0802-3
Screw shaft outer diameter: 8 mm
Lead: 2 mm
Ball center-to- center diameter: 8.3 mm
Outer diameter: 15 mm
Flange diameter: 28 mm
Overall length: 22 mm
Load Dynamic Rating: 1.4 kN
Load Static Rating: 2.3 kN

MDK 1002-3
MDK 1002-3
Screw shaft outer diameter: 10 mm
Lead: 2 mm
Ball center-to- center diameter: 10.3 mm
Outer diameter: 17 mm
Flange diameter: 34 mm
Overall length: 22 mm
Load Dynamic Rating: 1.5 kN
Load Static Rating: 2.9 kN

MDK 1202-3
MDK 1202-3
Screw shaft outer diameter: 12 mm
Lead: 2 mm
Ball center-to- center diameter: 12.3 mm
Outer diameter: 19 mm
Flange diameter: 36 mm
Overall length: 22 mm
Load Dynamic Rating: 1.7 kN
Load Static Rating: 3.6 kN

MDK 1402-3
MDK 1402-3
Screw shaft outer diameter: 14 mm
Lead: 2 mm
Ball center-to- center diameter: 14.3 mm
Outer diameter: 21 mm
Flange diameter: 40 mm
Overall length: 23 mm
Load Dynamic Rating: 1.8 kN
Load Static Rating: 4.3 kN

MDK 1404-3
MDK 1404-3
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.65 mm
Outer diameter: 26 mm
Flange diameter: 45 mm
Overall length: 33 mm
Load Dynamic Rating: 4.2 kN
Load Static Rating: 7.6 kN

MDK 1405-3
MDK 1405-3
Screw shaft outer diameter: 14 mm
Lead: 5 mm
Ball center-to- center diameter: 14.75 mm
Outer diameter: 26 mm
Flange diameter: 45 mm
Overall length: 42 mm
Load Dynamic Rating: 7 kN
Load Static Rating: 11.6 kN
