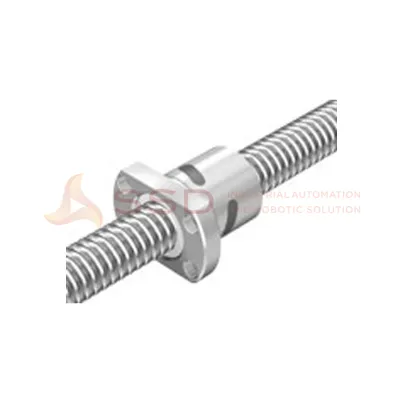

Ball Screw

DK
Precision

Slim nut Model DK
Ball Screw yang paling padat dengan diameter luar mur sekrup bolanya 70 hingga 80% dari jenis pipa kembali.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
DK 1404-6
DK 1404-6
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.5 mm
Outer diameter: 26 mm
Flange diameter: 45 mm
Overall length: 60 mm
Load Dynamic Rating: 7.7 kN
Load Static Rating: 15.4 kN

DK 1605-3
DK 1605-3
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: 30 mm
Flange diameter: 49 mm
Overall length: 45 mm
Load Dynamic Rating: 7.4 kN
Load Static Rating: 13 kN

DK 1605-4
DK 1605-4
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: 30 mm
Flange diameter: 49 mm
Overall length: 50 mm
Load Dynamic Rating: 9.5 kN
Load Static Rating: 17.4 kN

DK 2004-3
DK 2004-3
Screw shaft outer diameter: 20 mm
Lead: 4 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: 32 mm
Flange diameter: 56 mm
Overall length: 42 mm
Load Dynamic Rating: 5.2 kN
Load Static Rating: 11.6 kN

DK 2004-4
DK 2004-4
Screw shaft outer diameter: 20 mm
Lead: 4 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: 32 mm
Flange diameter: 56 mm
Overall length: 46 mm
Load Dynamic Rating: 6.6 kN
Load Static Rating: 15.5 kN

DK 2005-3
DK 2005-3
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 34 mm
Flange diameter: 58 mm
Overall length: 46 mm
Load Dynamic Rating: 8.5 kN
Load Static Rating: 17.3 kN

DK 2005-4
DK 2005-4
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 34 mm
Flange diameter: 58 mm
Overall length: 51 mm
Load Dynamic Rating: 11 kN
Load Static Rating: 23.1 kN

DK 2006-3
DK 2006-3
Screw shaft outer diameter: 20 mm
Lead: 6 mm
Ball center-to- center diameter: 21 mm
Outer diameter: 35 mm
Flange diameter: 58 mm
Overall length: 52 mm
Load Dynamic Rating: 11.4 kN
Load Static Rating: 21.5 kN

DK 2006-4
DK 2006-4
Screw shaft outer diameter: 20 mm
Lead: 6 mm
Ball center-to- center diameter: 21 mm
Outer diameter: 35 mm
Flange diameter: 58 mm
Overall length: 59 mm
Load Dynamic Rating: 14.6 kN
Load Static Rating: 28.6 kN

DK 2008-4
DK 2008-4
Screw shaft outer diameter: 20 mm
Lead: 8 mm
Ball center-to- center diameter: 21 mm
Outer diameter: 35 mm
Flange diameter: 58 mm
Overall length: 69 mm
Load Dynamic Rating: 14.6 kN
Load Static Rating: 28.8 kN

DK 2504-3
DK 2504-3
Screw shaft outer diameter: 25 mm
Lead: 4 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: 38 mm
Flange diameter: 63 mm
Overall length: 43 mm
Load Dynamic Rating: 5.7 kN
Load Static Rating: 15 kN

DK 2504-4
DK 2504-4
Screw shaft outer diameter: 25 mm
Lead: 4 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: 38 mm
Flange diameter: 63 mm
Overall length: 47 mm
Load Dynamic Rating: 7.4 kN
Load Static Rating: 19.9 kN

DK 2505-3
DK 2505-3
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.75 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 46 mm
Load Dynamic Rating: 9.7 kN
Load Static Rating: 22.6 kN

DK 2505-4
DK 2505-4
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.75 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 51 mm
Load Dynamic Rating: 12.4 kN
Load Static Rating: 30.3 kN

DK 2506-3
DK 2506-3
Screw shaft outer diameter: 25 mm
Lead: 6 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 52 mm
Load Dynamic Rating: 12.8 kN
Load Static Rating: 27 kN

DK 2506-4
DK 2506-4
Screw shaft outer diameter: 25 mm
Lead: 6 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 60 mm
Load Dynamic Rating: 16.8 kN
Load Static Rating: 37.4 kN

DK 2508-3
DK 2508-3
Screw shaft outer diameter: 25 mm
Lead: 8 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 62 mm
Load Dynamic Rating: 13.1 kN
Load Static Rating: 28.1 kN

DK 2508-4
DK 2508-4
Screw shaft outer diameter: 25 mm
Lead: 8 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 71 mm
Load Dynamic Rating: 16.8 kN
Load Static Rating: 37.5 kN

DK 2510-3
DK 2510-3
Screw shaft outer diameter: 25 mm
Lead: 10 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 80 mm
Load Dynamic Rating: 12.7 kN
Load Static Rating: 27 kN
