Ball Screw

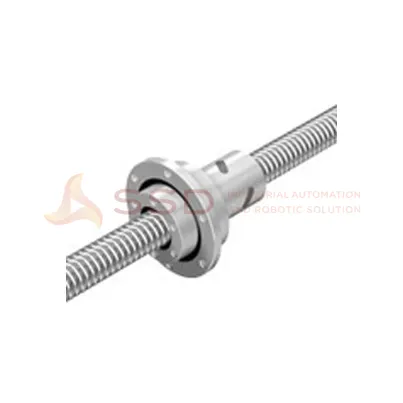

THK - Precision Ballscrew DIR merupakan Rotary Ball Screw di mana mur sekrup bola tipe-pemisah diintegrasikan dengan bantalan penopang.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
DIR 1605-6
DIR 1605-6
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: 48 mm
Flange diameter: 64 mm
Overall length: 79 mm
Load Dynamic Rating: 7.4 kN
Load Static Rating: 13 kN

DIR 2005-6
DIR 2005-6
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 56 mm
Flange diameter: 72 mm
Overall length: 80 mm
Load Dynamic Rating: 8.5 kN
Load Static Rating: 17.3 kN

DIR 2505-6
DIR 2505-6
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.75 mm
Outer diameter: 66 mm
Flange diameter: 86 mm
Overall length: 88 mm
Load Dynamic Rating: 9.7 kN
Load Static Rating: 22.6 kN

DIR 2510-4
DIR 2510-4
Screw shaft outer diameter: 25 mm
Lead: 10 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 66 mm
Flange diameter: 86 mm
Overall length: 106 mm
Load Dynamic Rating: 9 kN
Load Static Rating: 18 kN

DIR 3205-6
DIR 3205-6
Screw shaft outer diameter: 32 mm
Lead: 5 mm
Ball center-to- center diameter: 32.75 mm
Outer diameter: 78 mm
Flange diameter: 103 mm
Overall length: 86 mm
Load Dynamic Rating: 11.1 kN
Load Static Rating: 30.2 kN

DIR 3206-6
DIR 3206-6
Screw shaft outer diameter: 32 mm
Lead: 6 mm
Ball center-to- center diameter: 33 mm
Outer diameter: 78 mm
Flange diameter: 103 mm
Overall length: 97 mm
Load Dynamic Rating: 14.9 kN
Load Static Rating: 37.1 kN

DIR 3210-6
DIR 3210-6
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: 78 mm
Flange diameter: 103 mm
Overall length: 131 mm
Load Dynamic Rating: 25.7 kN
Load Static Rating: 52.2 kN

DIR 3610-6
DIR 3610-6
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37.75 mm
Outer diameter: 92 mm
Flange diameter: 122 mm
Overall length: 151 mm
Load Dynamic Rating: 28.8 kN
Load Static Rating: 63.8 kN

DIR 4010-6
DIR 4010-6
Screw shaft outer diameter: 40 mm
Lead: 10 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 100 mm
Flange diameter: 130 mm
Overall length: 142 mm
Load Dynamic Rating: 29.8 kN
Load Static Rating: 69.3 kN

DIR 4012-6
DIR 4012-6
Screw shaft outer diameter: 40 mm
Lead: 12 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 100 mm
Flange diameter: 130 mm
Overall length: 167 mm
Load Dynamic Rating: 30.6 kN
Load Static Rating: 72.3 kN
