Ball Screw

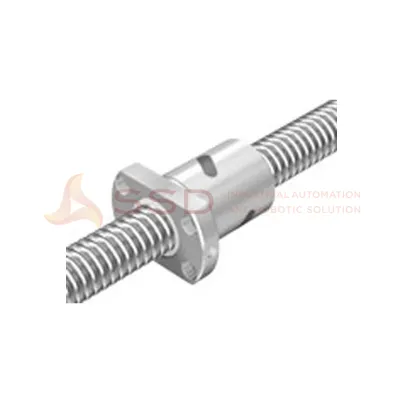

THK - Precision Ballscrew DIK merupakan A deflector-type Ball Screw di mana sekrup kanan dan kiri dilengkapi dengan fase di tengah mur sekrup bola, dan izin aksial ditetapkan pada nilai di bawah nol (di bawah preload).


Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
DIK 1404-4
DIK 1404-4
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.5 mm
Outer diameter: 26 mm
Flange diameter: 45 mm
Overall length: 48 mm
Load Dynamic Rating: 3 kN
Load Static Rating: 5.1 kN

DIK 1404-6
DIK 1404-6
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.5 mm
Outer diameter: 26 mm
Flange diameter: 45 mm
Overall length: 60 mm
Load Dynamic Rating: 4.2 kN
Load Static Rating: 7.7 kN

DIK 1605-6
DIK 1605-6
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: 30 mm
Flange diameter: 49 mm
Overall length: 60 mm
Load Dynamic Rating: 7.4 kN
Load Static Rating: 13 kN

DIK 2004-6
DIK 2004-6
Screw shaft outer diameter: 20 mm
Lead: 4 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: 32 mm
Flange diameter: 56 mm
Overall length: 62 mm
Load Dynamic Rating: 5.2 kN
Load Static Rating: 11.6 kN

DIK 2004-8
DIK 2004-8
Screw shaft outer diameter: 20 mm
Lead: 4 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: 32 mm
Flange diameter: 56 mm
Overall length: 70 mm
Load Dynamic Rating: 6.6 kN
Load Static Rating: 15.5 kN

DIK 2005-6
DIK 2005-6
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 34 mm
Flange diameter: 58 mm
Overall length: 61 mm
Load Dynamic Rating: 8.5 kN
Load Static Rating: 17.3 kN

DIK 2006-6
DIK 2006-6
Screw shaft outer diameter: 20 mm
Lead: 6 mm
Ball center-to- center diameter: 21 mm
Outer diameter: 35 mm
Flange diameter: 58 mm
Overall length: 76 mm
Load Dynamic Rating: 11.4 kN
Load Static Rating: 21.5 kN

DIK 2008-4
DIK 2008-4
Screw shaft outer diameter: 20 mm
Lead: 8 mm
Ball center-to- center diameter: 21 mm
Outer diameter: 35 mm
Flange diameter: 58 mm
Overall length: 69 mm
Load Dynamic Rating: 8.1 kN
Load Static Rating: 14.4 kN

DIK 2504-6
DIK 2504-6
Screw shaft outer diameter: 25 mm
Lead: 4 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: 38 mm
Flange diameter: 63 mm
Overall length: 63 mm
Load Dynamic Rating: 5.7 kN
Load Static Rating: 15 kN

DIK 2504-8
DIK 2504-8
Screw shaft outer diameter: 25 mm
Lead: 4 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: 38 mm
Flange diameter: 63 mm
Overall length: 71 mm
Load Dynamic Rating: 7.4 kN
Load Static Rating: 19.9 kN

DIK 2505-6
DIK 2505-6
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.75 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 61 mm
Load Dynamic Rating: 9.7 kN
Load Static Rating: 22.6 kN

DIK 2506-4
DIK 2506-4
Screw shaft outer diameter: 25 mm
Lead: 6 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 60 mm
Load Dynamic Rating: 9.1 kN
Load Static Rating: 18 kN

DIK 2506-6
DIK 2506-6
Screw shaft outer diameter: 25 mm
Lead: 6 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 72 mm
Load Dynamic Rating: 12.8 kN
Load Static Rating: 27 kN

DIK 2508-4
DIK 2508-4
Screw shaft outer diameter: 25 mm
Lead: 8 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 71 mm
Load Dynamic Rating: 9.2 kN
Load Static Rating: 18.8 kN

DIK 2508-6
DIK 2508-6
Screw shaft outer diameter: 25 mm
Lead: 8 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 94 mm
Load Dynamic Rating: 13.1 kN
Load Static Rating: 28.1 kN

DIK 2510-4
DIK 2510-4
Screw shaft outer diameter: 25 mm
Lead: 10 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 40 mm
Flange diameter: 63 mm
Overall length: 85 mm
Load Dynamic Rating: 9 kN
Load Static Rating: 18 kN

DIK 2805-6
DIK 2805-6
Screw shaft outer diameter: 28 mm
Lead: 5 mm
Ball center-to- center diameter: 28.75 mm
Outer diameter: 43 mm
Flange diameter: 71 mm
Overall length: 69 mm
Load Dynamic Rating: 10.5 kN
Load Static Rating: 26.4 kN

DIK 2805-8
DIK 2805-8
Screw shaft outer diameter: 28 mm
Lead: 5 mm
Ball center-to- center diameter: 28.75 mm
Outer diameter: 43 mm
Flange diameter: 71 mm
Overall length: 79 mm
Load Dynamic Rating: 13.4 kN
Load Static Rating: 35.2 kN

DIK 2806-6
DIK 2806-6
Screw shaft outer diameter: 28 mm
Lead: 6 mm
Ball center-to- center diameter: 29 mm
Outer diameter: 43 mm
Flange diameter: 71 mm
Overall length: 73 mm
Load Dynamic Rating: 14 kN
Load Static Rating: 32 kN

DIK 2810-4
DIK 2810-4
Screw shaft outer diameter: 28 mm
Lead: 10 mm
Ball center-to- center diameter: 29.25 mm
Outer diameter: 45 mm
Flange diameter: 71 mm
Overall length: 84 mm
Load Dynamic Rating: 12.3 kN
Load Static Rating: 25 kN

DIK 3204-6
DIK 3204-6
Screw shaft outer diameter: 32 mm
Lead: 4 mm
Ball center-to- center diameter: 32.5 mm
Outer diameter: 45 mm
Flange diameter: 76 mm
Overall length: 64 mm
Load Dynamic Rating: 6.4 kN
Load Static Rating: 19.6 kN

DIK 3204-8
DIK 3204-8
Screw shaft outer diameter: 32 mm
Lead: 4 mm
Ball center-to- center diameter: 32.5 mm
Outer diameter: 45 mm
Flange diameter: 76 mm
Overall length: 72 mm
Load Dynamic Rating: 8.2 kN
Load Static Rating: 26.1 kN

DIK 3204-10
DIK 3204-10
Screw shaft outer diameter: 32 mm
Lead: 4 mm
Ball center-to- center diameter: 32.5 mm
Outer diameter: 45 mm
Flange diameter: 76 mm
Overall length: 80 mm
Load Dynamic Rating: 10 kN
Load Static Rating: 32.7 kN

DIK 3205-6
DIK 3205-6
Screw shaft outer diameter: 32 mm
Lead: 5 mm
Ball center-to- center diameter: 32.75 mm
Outer diameter: 46 mm
Flange diameter: 76 mm
Overall length: 62 mm
Load Dynamic Rating: 11.1 kN
Load Static Rating: 30.2 kN

DIK 3205-8
DIK 3205-8
Screw shaft outer diameter: 32 mm
Lead: 5 mm
Ball center-to- center diameter: 32.75 mm
Outer diameter: 46 mm
Flange diameter: 76 mm
Overall length: 73 mm
Load Dynamic Rating: 14.2 kN
Load Static Rating: 40.3 kN

DIK 3206-6
DIK 3206-6
Screw shaft outer diameter: 32 mm
Lead: 6 mm
Ball center-to- center diameter: 33 mm
Outer diameter: 48 mm
Flange diameter: 76 mm
Overall length: 73 mm
Load Dynamic Rating: 14.9 kN
Load Static Rating: 37.1 kN

DIK 3206-8
DIK 3206-8
Screw shaft outer diameter: 32 mm
Lead: 6 mm
Ball center-to- center diameter: 33 mm
Outer diameter: 48 mm
Flange diameter: 76 mm
Overall length: 87 mm
Load Dynamic Rating: 19.1 kN
Load Static Rating: 49.5 kN

DIK 3210-6
DIK 3210-6
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: 54 mm
Flange diameter: 87 mm
Overall length: 110 mm
Load Dynamic Rating: 25.7 kN
Load Static Rating: 52.2 kN

DIK 3212-4
DIK 3212-4
Screw shaft outer diameter: 32 mm
Lead: 12 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: 54 mm
Flange diameter: 87 mm
Overall length: 98 mm
Load Dynamic Rating: 18.8 kN
Load Static Rating: 37 kN

DIK 3610-6
DIK 3610-6
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37.75 mm
Outer diameter: 58 mm
Flange diameter: 98 mm
Overall length: 122 mm
Load Dynamic Rating: 28.8 kN
Load Static Rating: 63.8 kN

DIK 3610-8
DIK 3610-8
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37.75 mm
Outer diameter: 58 mm
Flange diameter: 98 mm
Overall length: 143 mm
Load Dynamic Rating: 36.8 kN
Load Static Rating: 85 kN

DIK 3610-10
DIK 3610-10
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37.75 mm
Outer diameter: 58 mm
Flange diameter: 98 mm
Overall length: 164 mm
Load Dynamic Rating: 44.6 kN
Load Static Rating: 106.3 kN

DIK 4010-6
DIK 4010-6
Screw shaft outer diameter: 40 mm
Lead: 10 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 62 mm
Flange diameter: 104 mm
Overall length: 113 mm
Load Dynamic Rating: 29.8 kN
Load Static Rating: 69.3 kN

DIK 4010-8
DIK 4010-8
Screw shaft outer diameter: 40 mm
Lead: 10 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 62 mm
Flange diameter: 104 mm
Overall length: 137 mm
Load Dynamic Rating: 38.1 kN
Load Static Rating: 92.4 kN

DIK 4012-6
DIK 4012-6
Screw shaft outer diameter: 40 mm
Lead: 12 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 62 mm
Flange diameter: 104 mm
Overall length: 138 mm
Load Dynamic Rating: 30.6 kN
Load Static Rating: 72.3 kN

DIK 4012-8
DIK 4012-8
Screw shaft outer diameter: 40 mm
Lead: 12 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 62 mm
Flange diameter: 104 mm
Overall length: 163 mm
Load Dynamic Rating: 39.2 kN
Load Static Rating: 96.4 kN

DIK 4016-4
DIK 4016-4
Screw shaft outer diameter: 40 mm
Lead: 16 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 62 mm
Flange diameter: 104 mm
Overall length: 120 mm
Load Dynamic Rating: 21.5 kN
Load Static Rating: 68.4 kN

DIK 5010-6
DIK 5010-6
Screw shaft outer diameter: 50 mm
Lead: 10 mm
Ball center-to- center diameter: 51.75 mm
Outer diameter: 72 mm
Flange diameter: 123 mm
Overall length: 114 mm
Load Dynamic Rating: 33.9 kN
Load Static Rating: 90.7 kN

DIK 5010-8
DIK 5010-8
Screw shaft outer diameter: 50 mm
Lead: 10 mm
Ball center-to- center diameter: 51.75 mm
Outer diameter: 72 mm
Flange diameter: 123 mm
Overall length: 137 mm
Load Dynamic Rating: 43.4 kN
Load Static Rating: 120.5 kN

DIK 5010-10
DIK 5010-10
Screw shaft outer diameter: 50 mm
Lead: 10 mm
Ball center-to- center diameter: 51.75 mm
Outer diameter: 72 mm
Flange diameter: 123 mm
Overall length: 160 mm
Load Dynamic Rating: 52.5 kN
Load Static Rating: 150.9 kN

DIK 5012-6
DIK 5012-6
Screw shaft outer diameter: 50 mm
Lead: 12 mm
Ball center-to- center diameter: 52.25 mm
Outer diameter: 75 mm
Flange diameter: 129 mm
Overall length: 145 mm
Load Dynamic Rating: 45.8 kN
Load Static Rating: 113 kN

DIK 5012-8
DIK 5012-8
Screw shaft outer diameter: 50 mm
Lead: 12 mm
Ball center-to- center diameter: 52.25 mm
Outer diameter: 75 mm
Flange diameter: 129 mm
Overall length: 170 mm
Load Dynamic Rating: 58.6 kN
Load Static Rating: 150.6 kN

DIK 5016-4
DIK 5016-4
Screw shaft outer diameter: 50 mm
Lead: 16 mm
Ball center-to- center diameter: 52.25 mm
Outer diameter: 75 mm
Flange diameter: 129 mm
Overall length: 129 mm
Load Dynamic Rating: 32.3 kN
Load Static Rating: 75.5 kN

DIK 5016-6
DIK 5016-6
Screw shaft outer diameter: 50 mm
Lead: 16 mm
Ball center-to- center diameter: 52.25 mm
Outer diameter: 75 mm
Flange diameter: 129 mm
Overall length: 175 mm
Load Dynamic Rating: 45.7 kN
Load Static Rating: 113.3 kN

Distributor Produk Otomasi dan Robotik Power Transmission & Guide Ballscrew THK Precision Ballscrew DIK

POWER TRANSMISSION AND GUIDE, Supplier POWER TRANSMISSION AND GUIDE, Jual POWER TRANSMISSION AND GUIDE, Distributor POWER TRANSMISSION AND GUIDE, Ball Screw, Supplier Ball Screw, Jual Ball Screw, Distributor Ball Screw, THK, Jual THK, THK Indonesia,Distributor resmi THK,Agen resmi THK, THK Jakarta, THK Cikarang, THK LTC Glodok

#POWERTRANSMISSIONANDGUIDE #SupplierPOWERTRANSMISSIONANDGUIDE #JualPOWERTRANSMISSIONANDGUIDE #DistributorPOWERTRANSMISSIONANDGUIDE #BallScrew #SupplierBallScrew #JualBallScrew #DistributorBallScrew #THK #JualTHK #THKIndonesia #DistributorresmiTHK #AgenresmiTHK #THKJakarta #THKCikarang #THKLTCGlodok
