Ball Screw

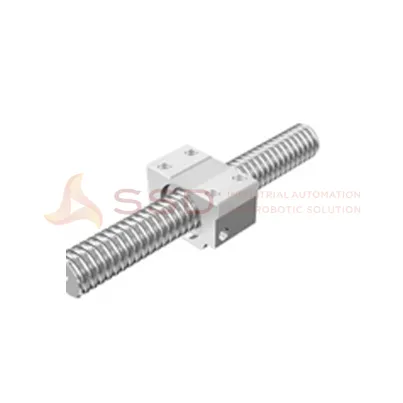

THK - Precision Ballscrew BNT merupakan produk dengan model yang dapat dipasang dengan kompak pada mesin tanpa housing karena lubang sekrup pemasang dibor pada mur sekrup bola persegi.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Specification:
BNT 1404-3.6
BNT 1404-3.6
Screw shaft outer diameter: 14 mm
Lead: 4 mm
Ball center-to- center diameter: 14.4 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 6.8 kN
Load Static Rating: 12.6 kN

BNT 1405-2.6
BNT 1405-2.6
Screw shaft outer diameter: 14 mm
Lead: 5 mm
Ball center-to- center diameter: 14.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 7.2 kN
Load Static Rating: 12.6 kN

BNT 1605-2.6
BNT 1605-2.6
Screw shaft outer diameter: 16 mm
Lead: 5 mm
Ball center-to- center diameter: 16.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 36 mm
Load Dynamic Rating: 7.8 kN
Load Static Rating: 14.7 kN

BNT 1808-3.6
BNT 1808-3.6
Screw shaft outer diameter: 18 mm
Lead: 8 mm
Ball center-to- center diameter: 19.3 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 56 mm
Load Dynamic Rating: 18.2 kN
Load Static Rating: 34.4 kN

BNT 2005-2.6
BNT 2005-2.6
Screw shaft outer diameter: 20 mm
Lead: 5 mm
Ball center-to- center diameter: 20.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 8.7 kN
Load Static Rating: 18.3 kN

BNT 2010-2.6
BNT 2010-2.6
Screw shaft outer diameter: 20 mm
Lead: 10 mm
Ball center-to- center diameter: 21.25 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 58 mm
Load Dynamic Rating: 14.7 kN
Load Static Rating: 27.8 kN

BNT 2505-2.6
BNT 2505-2.6
Screw shaft outer diameter: 25 mm
Lead: 5 mm
Ball center-to- center diameter: 25.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 35 mm
Load Dynamic Rating: 9.6 kN
Load Static Rating: 23 kN

BNT 2510-5.3
BNT 2510-5.3
Screw shaft outer diameter: 25 mm
Lead: 10 mm
Ball center-to- center diameter: 26.8 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 94 mm
Load Dynamic Rating: 43.4 kN
Load Static Rating: 92.8 kN

BNT 2806-2.6
BNT 2806-2.6
Screw shaft outer diameter: 28 mm
Lead: 6 mm
Ball center-to- center diameter: 28.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 42 mm
Load Dynamic Rating: 10.1 kN
Load Static Rating: 25.8 kN

BNT 2806-5.3
BNT 2806-5.3
Screw shaft outer diameter: 28 mm
Lead: 6 mm
Ball center-to- center diameter: 28.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 67 mm
Load Dynamic Rating: 18.3 kN
Load Static Rating: 51.6 kN

BNT 3210-2.6
BNT 3210-2.6
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 64 mm
Load Dynamic Rating: 27.3 kN
Load Static Rating: 59.5 kN

BNT 3210-5.3
BNT 3210-5.3
Screw shaft outer diameter: 32 mm
Lead: 10 mm
Ball center-to- center diameter: 33.75 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 94 mm
Load Dynamic Rating: 49.6 kN
Load Static Rating: 118.9 kN

BNT 3610-2.6
BNT 3610-2.6
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 64 mm
Load Dynamic Rating: 28.7 kN
Load Static Rating: 65.6 kN

BNT 3610-5.3
BNT 3610-5.3
Screw shaft outer diameter: 36 mm
Lead: 10 mm
Ball center-to- center diameter: 37 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 96 mm
Load Dynamic Rating: 52.1 kN
Load Static Rating: 131.2 kN

BNT 4512-5.3
BNT 4512-5.3
Screw shaft outer diameter: 45 mm
Lead: 12 mm
Ball center-to- center diameter: 46.5 mm
Outer diameter: — mm
Flange diameter: — mm
Overall length: 115 mm
Load Dynamic Rating: 68.1 kN
Load Static Rating: 186.7 kN
