Ball Screw

BLR
Rolled Ball Screw

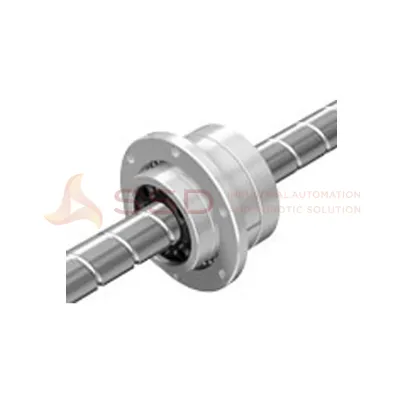

Large Lead Rotary nut Model BLR
THK - Precision Ballscrew BLR merupakan A nut-rotating ball screw yang memiliki struktur terintegrasi yang terdiri dari ball screw nut dan support bearing.


Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
BLR 1616-3.6
Screw shaft outer diameter: 16 mm
Lead: 16 mm
Ball center-to- center diameter: 16.65 mm
Outer diameter: 52   mm
Flange diameter: 68 mm
Overall length: 43.5 mm
Load Dynamic Rating: 7.1 kN
Load Static Rating: 14.3 kN

BLR 2020-3.6
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 62   mm
Flange diameter: 78 mm
Overall length: 54 mm
Load Dynamic Rating: 11.1 kN
Load Static Rating: 24.7 kN

BLR 2525-3.6
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 72   mm
Flange diameter: 92 mm
Overall length: 65 mm
Load Dynamic Rating: 16.6 kN
Load Static Rating: 38.7 kN

BLR 3232-3.6
Screw shaft outer diameter: 32 mm
Lead: 32 mm
Ball center-to- center diameter: 33.25 mm
Outer diameter: 80   mm
Flange diameter: 105 mm
Overall length: 80 mm
Load Dynamic Rating: 23.7 kN
Load Static Rating: 59.5 kN

BLR 3636-3.6
Screw shaft outer diameter: 36 mm
Lead: 36 mm
Ball center-to- center diameter: 37.4 mm
Outer diameter: 100   mm
Flange diameter: 130 mm
Overall length: 93 mm
Load Dynamic Rating: 30.8 kN
Load Static Rating: 78 kN

BLR 4040-3.6
Screw shaft outer diameter: 40 mm
Lead: 40 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 110   mm
Flange diameter: 140 mm
Overall length: 98 mm
Load Dynamic Rating: 38.7 kN
Load Static Rating: 99.2 kN

BLR 5050-3.6
Screw shaft outer diameter: 50 mm
Lead: 50 mm
Ball center-to- center diameter: 52.2 mm
Outer diameter: 120   mm
Flange diameter: 156 mm
Overall length: 126 mm
Load Dynamic Rating: 57.8 kN
Load Static Rating: 155 kN
