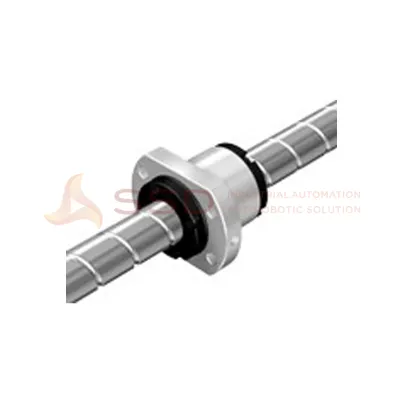

Ball Screw

Large Lead Model BLK
Dengan Ball Screw ini, shaft diameter sama dengan lead dimension.

Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
BLK 1510-5.6
Screw shaft outer diameter: 15 mm
Lead: 10 mm
Ball center-to- center diameter: 15.75 mm
Outer diameter: 34 mm
Flange diameter: 57 mm
Overall length: 44 mm
Load Dynamic Rating: 14.3 kN
Load Static Rating: 27.8 kN

BLK 1616-2.8
Screw shaft outer diameter: 16 mm
Lead: 16 mm
Ball center-to- center diameter: 16.65 mm
Outer diameter: 32 mm
Flange diameter: 53 mm
Overall length: 54 mm
Load Dynamic Rating: 5.2 kN
Load Static Rating: 9.9 kN

BLK 1616-3.6
Screw shaft outer diameter: 16 mm
Lead: 16 mm
Ball center-to- center diameter: 16.65 mm
Outer diameter: 32 mm
Flange diameter: 53 mm
Overall length: 38 mm
Load Dynamic Rating: 7.1 kN
Load Static Rating: 14.3 kN

BLK 2020-2.8
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 39 mm
Flange diameter: 62 mm
Overall length: 65 mm
Load Dynamic Rating: 8.1 kN
Load Static Rating: 17.2 kN

BLK 2020-3.6
Screw shaft outer diameter: 20 mm
Lead: 20 mm
Ball center-to- center diameter: 20.75 mm
Outer diameter: 39 mm
Flange diameter: 62 mm
Overall length: 45 mm
Load Dynamic Rating: 11.1 kN
Load Static Rating: 24.7 kN

BLK 2525-2.8
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 47 mm
Flange diameter: 74 mm
Overall length: 80 mm
Load Dynamic Rating: 12.2 kN
Load Static Rating: 26.9 kN

BLK 2525-3.6
Screw shaft outer diameter: 25 mm
Lead: 25 mm
Ball center-to- center diameter: 26 mm
Outer diameter: 47 mm
Flange diameter: 74 mm
Overall length: 55 mm
Load Dynamic Rating: 16.6 kN
Load Static Rating: 38.7 kN

BLK 3232-2.8
Screw shaft outer diameter: 32 mm
Lead: 32 mm
Ball center-to- center diameter: 33.25 mm
Outer diameter: 58 mm
Flange diameter: 92 mm
Overall length: 102 mm
Load Dynamic Rating: 17.3 kN
Load Static Rating: 41.4 kN

BLK 3232-3.6
Screw shaft outer diameter: 32 mm
Lead: 32 mm
Ball center-to- center diameter: 33.25 mm
Outer diameter: 58 mm
Flange diameter: 92 mm
Overall length: 70 mm
Load Dynamic Rating: 23.7 kN
Load Static Rating: 59.5 kN

BLK 3620-5.6
Screw shaft outer diameter: 36 mm
Lead: 20 mm
Ball center-to- center diameter: 37.75 mm
Outer diameter: 70 mm
Flange diameter: 110 mm
Overall length: 78 mm
Load Dynamic Rating: 54.9 kN
Load Static Rating: 134.3 kN

BLK 3624-5.6
Screw shaft outer diameter: 36 mm
Lead: 24 mm
Ball center-to- center diameter: 38 mm
Outer diameter: 75 mm
Flange diameter: 115 mm
Overall length: 94 mm
Load Dynamic Rating: 63.8 kN
Load Static Rating: 151.9 kN

BLK 3636-2.8
Screw shaft outer diameter: 36 mm
Lead: 36 mm
Ball center-to- center diameter: 37.4 mm
Outer diameter: 66 mm
Flange diameter: 106 mm
Overall length: 113 mm
Load Dynamic Rating: 22.4 kN
Load Static Rating: 54.1 kN

BLK 3636-3.6
Screw shaft outer diameter: 36 mm
Lead: 36 mm
Ball center-to- center diameter: 37.4 mm
Outer diameter: 66 mm
Flange diameter: 106 mm
Overall length: 77 mm
Load Dynamic Rating: 30.8 kN
Load Static Rating: 78 kN

BLK 4040-2.8
Screw shaft outer diameter: 40 mm
Lead: 40 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 73 mm
Flange diameter: 114 mm
Overall length: 125 mm
Load Dynamic Rating: 28.2 kN
Load Static Rating: 68.9 kN

BLK 4040-3.6
Screw shaft outer diameter: 40 mm
Lead: 40 mm
Ball center-to- center diameter: 41.75 mm
Outer diameter: 73 mm
Flange diameter: 114 mm
Overall length: 85 mm
Load Dynamic Rating: 38.7 kN
Load Static Rating: 99.2 kN

BLK 5050-2.8
Screw shaft outer diameter: 50 mm
Lead: 50 mm
Ball center-to- center diameter: 52.2 mm
Outer diameter: 90 mm
Flange diameter: 135 mm
Overall length: 156 mm
Load Dynamic Rating: 42.2 kN
Load Static Rating: 107.8 kN

BLK 5050-3.6
Screw shaft outer diameter: 50 mm
Lead: 50 mm
Ball center-to- center diameter: 52.2 mm
Outer diameter: 90 mm
Flange diameter: 135 mm
Overall length: 106 mm
Load Dynamic Rating: 57.8 kN
Load Static Rating: 155 kN
